Overview

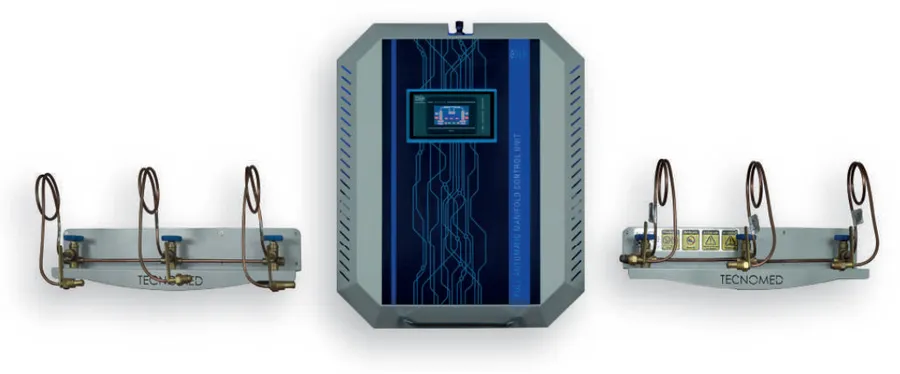

A central cylinder supply unit is the most critical element of a hospital medical gas system, and the automatic medical gas manifold system handles it in two stages. First-stage regulators reduce the high pressure arriving from the cylinders to 8-10 bar. Second-stage regulators then bring that intermediate pressure down to the final 4-5 bar line value. The unit is fed by left and right ramps carrying the cylinders, and automatic changeover between the duty and reserve bank keeps supply uninterrupted while empty cylinders are replaced.
High-pressure and low-pressure sensors connect the manifold to a digital alarm panel, which raises an emergency alarm on any high or low line pressure event and shows the outlet pressure together with the remaining cylinder content on screen. Distribution inside the ramps uses medical copper pipe with a wall thickness chosen for high-capacity flow, so the gas passes smoothly even at maximum draw. A by-pass line, visual and audible alarms and three selectable languages with adjustable upper and lower alarm limits are part of the standard specification, and all data can be transmitted to central monitoring systems.

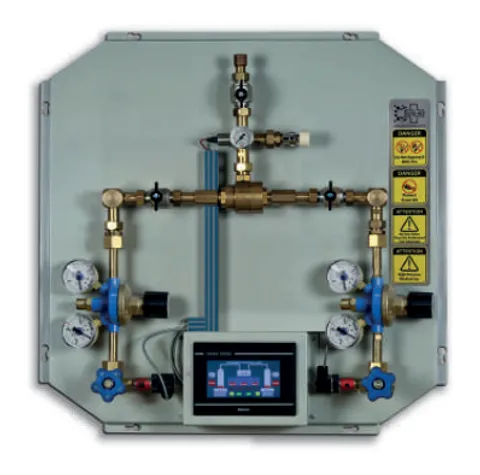

Three body versions are offered. The Deluxe unit (TEC51.19.DEX) switches between right and left ramps with a single click, monitors both cylinder banks and can take a liquid tank as a third reserve source, controlling three lines simultaneously through its electronic control mechanism. The Vexillum unit (TEC51.19.VEX) and the compact Junior unit (TEC51.19.JUN) cover mid-range and smaller installations. Alarm control choices run from the Deluxe (DMA) and Vexillum (VMA) panels to a touch screen unit (TSA) and a remote Overseer alarm (OSA).
The system can be fed by individual cylinders or by cylinder bundles, and it can be integrated with liquid oxygen tanks or oxygen generator stations as part of a redundant source strategy. Ramps are available for 1 to 6 cylinders, with manifold options from 2x2 up to 2x20 and capacities of 35, 180, 300 and 600 m³/h. Supporting components include flexible copper connection pipes, flexible high-pressure hoses, wall-mounted cylinder connection units and collector evacuation valves.
Key features
- Automatic gas supply without interruption between duty and reserve banks
- Two-stage, two-regulator design reducing cylinder pressure to 4-5 bar
- High-capacity gas flow up to 600 m³/h
- By-pass line for maintenance without shutting down the line
- Visual and audible alarm with high and low pressure sensors
- Digital alarm panel showing line pressure and remaining cylinder content
- Adjustable upper and lower alarm limits with three language options
- Data transmission to central monitoring systems
- 3/4" inlet and outlet connections, fully automatic operation
- Manifold options from 2x2 to 2x20 cylinders, ramps for 1-6 cylinders
Technical specifications
Automatic Medical Gas Manifold Supply Unit – Technical Data (TEC51.19)
| Parameter | Value |
|---|---|
| Capacity | 35 m³/h - 180 m³/h - 300 m³/h - 600 m³/h |
| Manifold Options | 2x2 - 2x3 - 2x4 - 2x5 - 2x6 - 2x10 - 2x15 - 2x20 |
| Type | 2 Stage, 2 Regulator |
| Input Size | 3/4" |
| Output Size | 3/4" |
| Output Pressure | 4 - 5 bar |
| Automation Compliance | Fully Auto - Digital Alarm |
Cylinder Ramps (TEC51.19.XX)
| Description | Product Code |
|---|---|
| 1 Cylinder Ramp | TEC51.19.01 |
| 2 Cylinder Ramp | TEC51.19.02 |
| 3 Cylinder Ramp | TEC51.19.03 |
| 4 Cylinder Ramp | TEC51.19.04 |
| 5 Cylinder Ramp | TEC51.19.05 |
| 6 Cylinder Ramp | TEC51.19.06 |

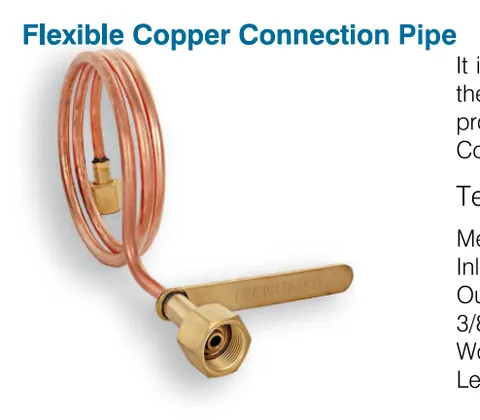

Flexible Copper Connection Pipe (TEC51.19.07)
| Parameter | Value |
|---|---|
| Type | Medical Flexible Copper Pipe |
| Inlet Size | 3/4"-1/2" |
| Outlet Size | 3/8"-5/8"-3/4"-1/2"-Bullnose |
| Working Pressure | 300 bar |
| Test Pressure | 400 bar |
| Length | 1200 mm |
Flexible High Pressure Hose (TEC51.19.08)
| Parameter | Value |
|---|---|
| Construction | Double wound stainless steel hose |
| Layers | PFA or ETFE inner tubing, Kevlar braid, interlayer PTFE tape, stainless steel braid, Hytrel jacket |
| Input Size | 3/4" |
| Safety Rope | Steel safety rope with stainless clamp |
| Connection Union and Nuts | Brass raw material |
| Length | Optional |
| Working Pressure | 300 bar |
| Test Pressure | 500 bar |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC51.19 | Automatic Medical Gas Manifold Supply Unit – Two-stage fully automatic manifold, 35-600 m³/h |

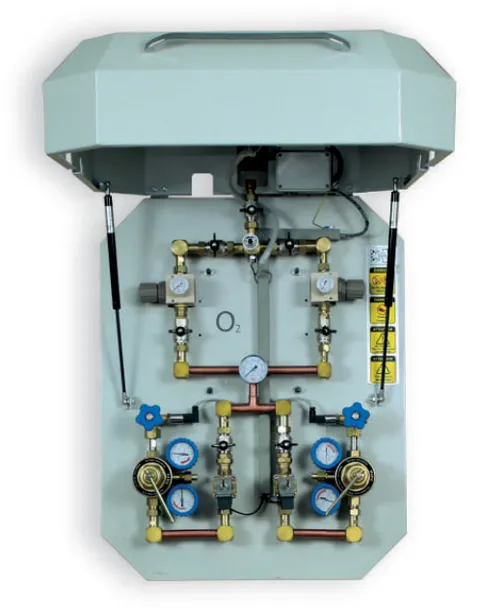

TEC51.19.DEX | Deluxe Fully Automatic Medical Gas Manifold Supply Unit – Single-click ramp transition, can control three lines |
TEC.51.19.VEX | Vexillum Fully Automatic Medical Gas Manifold Supply Unit – Panel-type fully automatic unit with alarm control |
TEC.51.19.JUN | Junior Fully Automatic Medical Gas Manifold Supply Unit – Compact unit for smaller facilities |
TEC51.19.01 | 1 Cylinder Ramp – Medical copper collector ramp |
TEC51.19.02 | 2 Cylinder Ramp – Medical copper collector ramp |
TEC51.19.03 | 3 Cylinder Ramp – Medical copper collector ramp |
TEC51.19.04 | 4 Cylinder Ramp – Medical copper collector ramp |
TEC51.19.05 | 5 Cylinder Ramp – Medical copper collector ramp |
TEC51.19.06 | 6 Cylinder Ramp – Medical copper collector ramp |

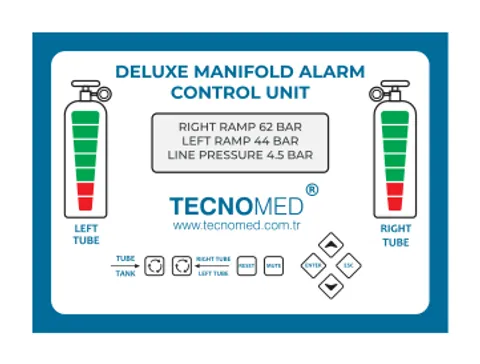

TEC51.19.DMA | Deluxe Manifold Alarm Control Unit – Electronic control of three lines, liquid tank as third reserve |
TEC51.19.VMA | Vexillum Manifold Alarm Control Unit – Two high pressure and one low pressure sensor |
TEC51.19.TSA | Touch Screen Manifold Alarm Control Unit – Touch panel changeover, sensor distance up to 1.5 m |
TEC51.19.OSA | Overseer Alarm Unit – Remote audible and red/green alarm, three low pressure transmitters |
TEC51.19.07 | Flexible Copper Connection Pipe – 300 bar working, tested at 400 bar, 1200 mm |
TEC51.19.08 | Flexible High Pressure Hose – 300 bar working, 500 bar test, optional length |
TEC51.19.09 | Cylinder Connection Unit – Wall mounted, for 2, 3 and 5 cylinder connections |
TEC51.19.10 | Evacuation Valve – Brass collector evacuation valve, single gas outlet point |
Options and accessories
- Deluxe, Vexillum or Junior body version
- Deluxe, Vexillum, touch screen or Overseer alarm control unit
- Liquid oxygen tank as third reserve source (Deluxe only)
- Feeding from single cylinders or cylinder bundles
- Integration with liquid oxygen tanks or PSA oxygen generator stations
- Flexible copper connection pipe or flexible high-pressure hose for long runs
- Cylinder connection units for 2, 3 or 5 cylinders
- Collector evacuation valve
Frequently asked questions
How does the manifold keep supply going when a cylinder bank empties?
The unit is built as two banks on left and right ramps. When the duty bank falls below the set pressure, the system changes over automatically to the reserve bank and the alarm unit signals that the empty side needs replacing. A by-pass line lets staff work on the unit without interrupting the pipeline.
What pressure does the manifold deliver to the pipeline?
First-stage regulators reduce cylinder pressure to 8-10 bar and second-stage regulators bring it to the final line value of 4-5 bar. Inlet and outlet connections are 3/4", and capacity options run from 35 m³/h up to 600 m³/h.
How many cylinders can be connected?
Ramps are produced for 1 to 6 cylinders (TEC51.19.01 to TEC51.19.06) and manifold configurations run from 2x2 up to 2x20. The system can also be fed from cylinder bundles instead of single cylinders.
Which alarm unit should be specified?
The Deluxe alarm (DMA) suits installations that need three lines and a liquid tank as third reserve. The Vexillum alarm (VMA) covers standard two-bank manifolds with adjustable limits. The touch screen unit (TSA) adds a graphical panel, and the Overseer unit (OSA) is an audible and light-indicator alarm for remote technical rooms.
