Overview

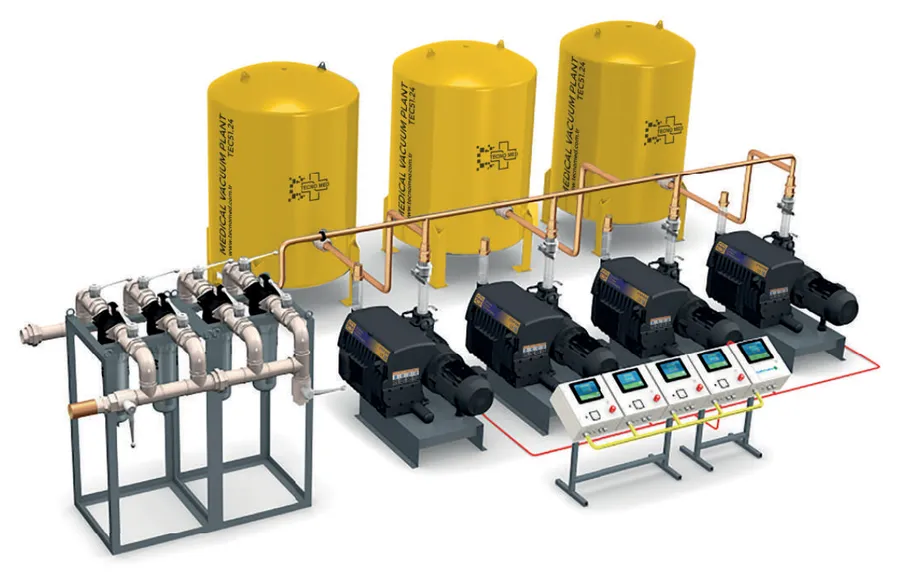

A medical vacuum plant creates and maintains the negative pressure that every suction outlet in the hospital draws on. In the TEC51.22 configuration, vacuum pumps are connected in parallel and the control panel starts each of them at equal time and intervals, so wear is spread evenly and no single machine accumulates all the running hours. The vacuum generated is held in the tanks, and the air drawn out of the line passes through bacteria line filters before it can reach the pumps or the exhaust.
The PLC control panel is the operating centre of the plant. It shows whether each pump is active or passive, provides a soft start that prevents pump wear, and manages the equal-aging sequence that extends pump life. Triplex operation means the plant continues to supply the required vacuum while one pump is isolated for a maintenance kit change, which is what makes the system acceptable for theatre and intensive care duty.
Seven models cover system capacities from 25 m³/h to 305 m³/h per pump at 50 Hz, with electric motor powers from 0,75 kW to 7,5 kW. Every model is supplied with three pumps, two vacuum tanks of 500, 1000 or 2000 litres, a double bacteria filter set, a complete connection equipment set and one PLC control panel. Tecnomed medical vacuum plants are designed and manufactured according to HTM 02-01 and HTM 2021, and the system complies with MDD 93/42/EEC and EN ISO 7396-1 standards.
Key features
- Three vacuum pumps connected in parallel for uninterrupted suction
- Equal-aging control so all pumps accumulate similar running hours
- System capacities from 25 m³/h to 305 m³/h per pump at 50 Hz
- Motor powers from 0,75 kW to 7,5 kW
- Twin vacuum tanks of 500 Lt, 1000 Lt or 2000 Lt
- Double bacteria filter set on the line
- PLC control panel showing active and passive status of each pump
- Soft start that prevents pump wear
- Complete connection equipment set supplied with every model
Technical specifications
Medical Vacuum Plant Models (TEC51.22)
| Product Code | System Capacity (m³/h 50 hz) | Electric Motor Power Kw/50 hz | Tank Capacity | Bacteria Filter Group | Connection Equipment | PLC Control Panel |
|---|---|---|---|---|---|---|
| TEC51.22.01 | 25 m³/h x 3 | 0,75 kw | 500 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.22.02 | 40 m³/h x 3 | 1,1 kw | 500 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.22.03 | 60 m³/h x 3 | 1,5 kw | 500 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.22.04 | 106 m³/h x 3 | 2,2 kw | 1000 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.22.05 | 151 m³/h x 3 | 3,3 kw | 1000 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.22.06 | 205 m³/h x 3 | 5,5 kw | 1000 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.22.07 | 305 m³/h x 3 | 7,5 kw | 2000 Lt x 2 | Double Set | 1 Set | 1 PC |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC51.22.01 | Medical Vacuum Plant 25 m³/h x 3 – 0,75 kW pumps, 500 Lt x 2 tanks |
TEC51.22.02 | Medical Vacuum Plant 40 m³/h x 3 – 1,1 kW pumps, 500 Lt x 2 tanks |
TEC51.22.03 | Medical Vacuum Plant 60 m³/h x 3 – 1,5 kW pumps, 500 Lt x 2 tanks |
TEC51.22.04 | Medical Vacuum Plant 106 m³/h x 3 – 2,2 kW pumps, 1000 Lt x 2 tanks |
TEC51.22.05 | Medical Vacuum Plant 151 m³/h x 3 – 3,3 kW pumps, 1000 Lt x 2 tanks |
TEC51.22.06 | Medical Vacuum Plant 205 m³/h x 3 – 5,5 kW pumps, 1000 Lt x 2 tanks |
TEC51.22.07 | Medical Vacuum Plant 305 m³/h x 3 – 7,5 kW pumps, 2000 Lt x 2 tanks |
Options and accessories
- Vertical or horizontal vacuum tanks
- Clog indicator on the bacteria filter group
- Rack system layout for narrow plant rooms
- Tank-over layout for low ceiling rooms
- General and preventive maintenance kits for the pump range
Frequently asked questions
What does equal-aging control mean?
The PLC panel starts each of the three parallel pumps at equal time and intervals instead of always running the same lead machine. Running hours are therefore shared, the pumps age together and the interval between overhauls is predictable across the set.
How is the plant protected from contamination?
Negative pressure drawn into the vacuum tanks passes through bacteria line filters, supplied as a double set so one can be isolated for element replacement while the other stays in service. The filter group also carries a scum collection jar and optional clog indicator.
How do we select the right model?
Selection follows the diversified suction demand of the hospital, calculated from the number and type of vacuum outlets. The range runs from 25 m³/h to 305 m³/h per pump, so the model is fixed once the outlet schedule and simultaneity factor of the project are known.
What if the plant room is small or has a low ceiling?
Two alternative layouts exist with the same capacity table. The rack system plant (TEC51.23) stacks the pumps in a modular cabinet for narrow spaces, and the tank-over plant (TEC51.24) mounts twin pumps on a horizontal tank for rooms with limited headroom.
