Overview

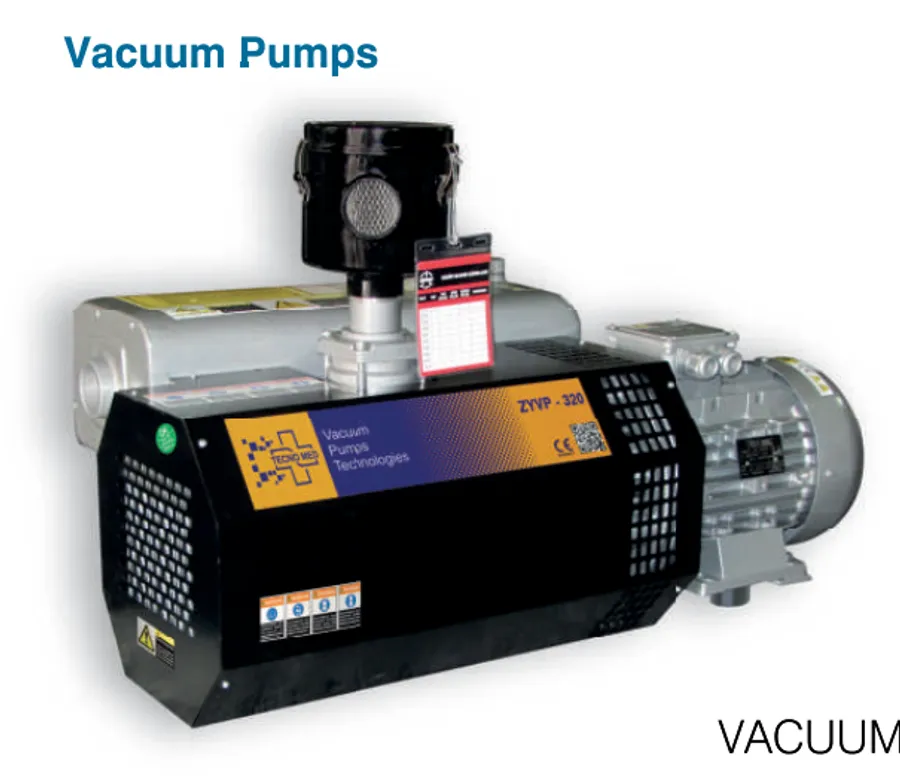

The medical vacuum pump is the machine that creates negative pressure in a hospital suction system, and the TEC51.25 range is designed for that duty rather than adapted from industrial use. The pumps use oily rotating pallets, which gives quiet operation and high performance under continuous working conditions, and they are air cooled so no water circuit is needed in the plant room. Purifying filters on the exhaust outlet clean the discharged air before it leaves the machine.
Seven frame sizes cover the full plant range. Rated capacity at 50 Hz runs from 25 m³/h on the TEC025 to 305 m³/h on the TEC305, with motor powers of 0,75 to 7,5 kW, a motor speed of 1500 rpm across the range and a vacuum efficiency of 2 mbar on every model. Noise levels rise from 53 dB(A) to 73 dB(A) and approximate weights from 27 kg to 265 kg, with operating temperatures between 80 °C and 86 °C. These are the same machines used in the TEC51.22, TEC51.23 and TEC51.24 plants.

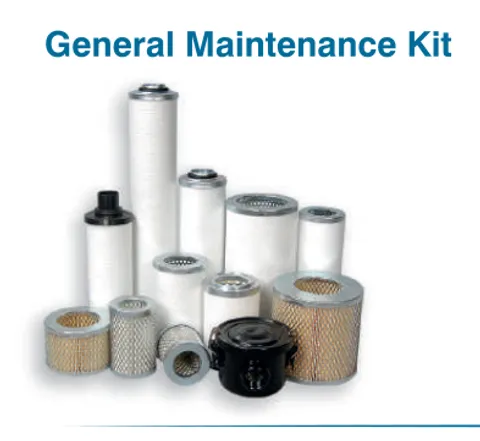

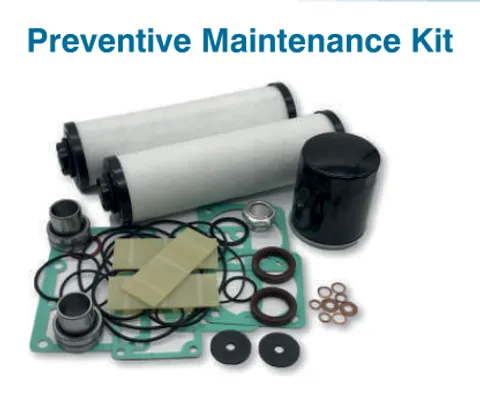

Servicing is packaged into two kits. The general maintenance kit (TEC.51.25.01) is applied every 3000 hours or once every six months and covers the oil change, oil filter, air filter and exhaust filter replacement plus general inspection and cleaning. The preventive maintenance kit (TEC.51.25.02) is recommended every 12.000 hours or once every two years and includes bearings, cover gaskets, sealings, pallets and coupling replacement. Keeping both kits on site is the simplest way to hold a hospital suction system at full capacity.
Key features
- Specially designed for medical systems
- High performance under continuous working conditions
- Oily rotating pallets with silent operation
- Purifying filters on the exhaust outlet
- Air cooled system, no cooling water required
- Easy maintenance with packaged service kits
- Rated capacities from 25 m³/h to 305 m³/h at 50 Hz
- Vacuum efficiency of 2 mbar across the whole range
- Motor speed 1500 rpm on all frame sizes
Technical specifications
Vacuum Pumps Technical Specifications (TEC51.25)
| Technical Specification | Unit | TEC025 | TEC040 | TEC060 | TEC106 | TEC151 | TEC205 | TEC305 |
|---|---|---|---|---|---|---|---|---|
| Rated Capacity | 50 Hz - m³/h | 25 | 40 | 60 | 106 | 151 | 205 | 305 |
| Motor Power | 50 Hz - kw | 0,75 | 1,1 | 1,5 | 2,2 | 3,3 | 5,5 | 7,5 |
| Motor Speed | 50 Hz - d/d | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Noise Level | 50 Hz - db(A) | 53 | 60 | 63 | 64 | 65 | 70 | 73 |
| Operation Temperature | 50 Hz - °C | 80 | 80 | 82 | 84 | 84 | 82 | 86 |
| Approximate Weight | Kg. | 27 | 48 | 56 | 75 | 99 | 190 | 265 |
| Vacuum Efficiency | mbar | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Maintenance Kits
| Product Code | Kit | Interval | Contents |
|---|---|---|---|
| TEC.51.25.01 | General Maintenance Kit | Every 3000 hours or once every 6 months | Oil change, oil filter replacement, air filter replacement, exhaust filters replacement, general inspection and cleaning |
| TEC.51.25.02 | Preventive Maintenance Kit | Every 12.000 hours or once every 2 years | Replacement of bearings, cover gaskets replacement, change of bearings, change of sealings, change of pallets, coupling change |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC025 | Medical Vacuum Pump 25 m³/h – 0,75 kW, 53 db(A), 27 kg |
TEC040 | Medical Vacuum Pump 40 m³/h – 1,1 kW, 60 db(A), 48 kg |
TEC060 | Medical Vacuum Pump 60 m³/h – 1,5 kW, 63 db(A), 56 kg |
TEC106 | Medical Vacuum Pump 106 m³/h – 2,2 kW, 64 db(A), 75 kg |
TEC151 | Medical Vacuum Pump 151 m³/h – 3,3 kW, 65 db(A), 99 kg |
TEC205 | Medical Vacuum Pump 205 m³/h – 5,5 kW, 70 db(A), 190 kg |
TEC305 | Medical Vacuum Pump 305 m³/h – 7,5 kW, 73 db(A), 265 kg |
TEC.51.25.01 | General Maintenance Kit – Every 3000 hours or 6 months |
TEC.51.25.02 | Preventive Maintenance Kit – Every 12.000 hours or 2 years |
Options and accessories
- General maintenance kit for the 3000 hour service
- Preventive maintenance kit for the 12.000 hour overhaul
- Supply as a loose replacement pump for an existing plant
- Integration into triplex, rack or tank-over plant configurations
Frequently asked questions
What vacuum level do the pumps reach?
Vacuum efficiency is 2 mbar across the whole TEC025 to TEC305 range, with motor speed fixed at 1500 rpm. Rated capacity at 50 Hz is what changes between frame sizes, from 25 m³/h up to 305 m³/h.
How often does a medical vacuum pump need servicing?
The general maintenance kit is applied every 3000 running hours or once every six months and covers oil, oil filter, air filter and exhaust filters with a general inspection. The preventive kit is recommended every 12.000 hours or once every two years and replaces bearings, gaskets, sealings, pallets and the coupling.
How noisy are the pumps in the plant room?
Noise level ranges from 53 dB(A) on the TEC025 to 73 dB(A) on the TEC305 at 50 Hz. The oily rotating pallet design is the reason for the relatively quiet running, and the rack system plant adds a cabinet that helps further in occupied areas.
Can these pumps replace machines in an existing plant?
Yes. The seven frame sizes match the capacities used across the TEC51.22, TEC51.23 and TEC51.24 plants, so they can be supplied individually as replacements. Weight and motor power data in the table help confirm the mounting and electrical arrangement before ordering.
