Overview
A medical air plant takes ambient air and turns it into a gas fit for patient use. Screw compressors deliver compressed air at 7 to 10 bar depending on the machine, and that air is stored in the receiver tanks. From the tanks it passes through the air dryers, which remove moisture, and then through the sterilisation chain: a particle trap, an oil trap and an activated carbon filter. Once the air meets medical requirements, the regulator group reduces line pressure to the value the hospital pipeline needs and releases it into the medical air system.

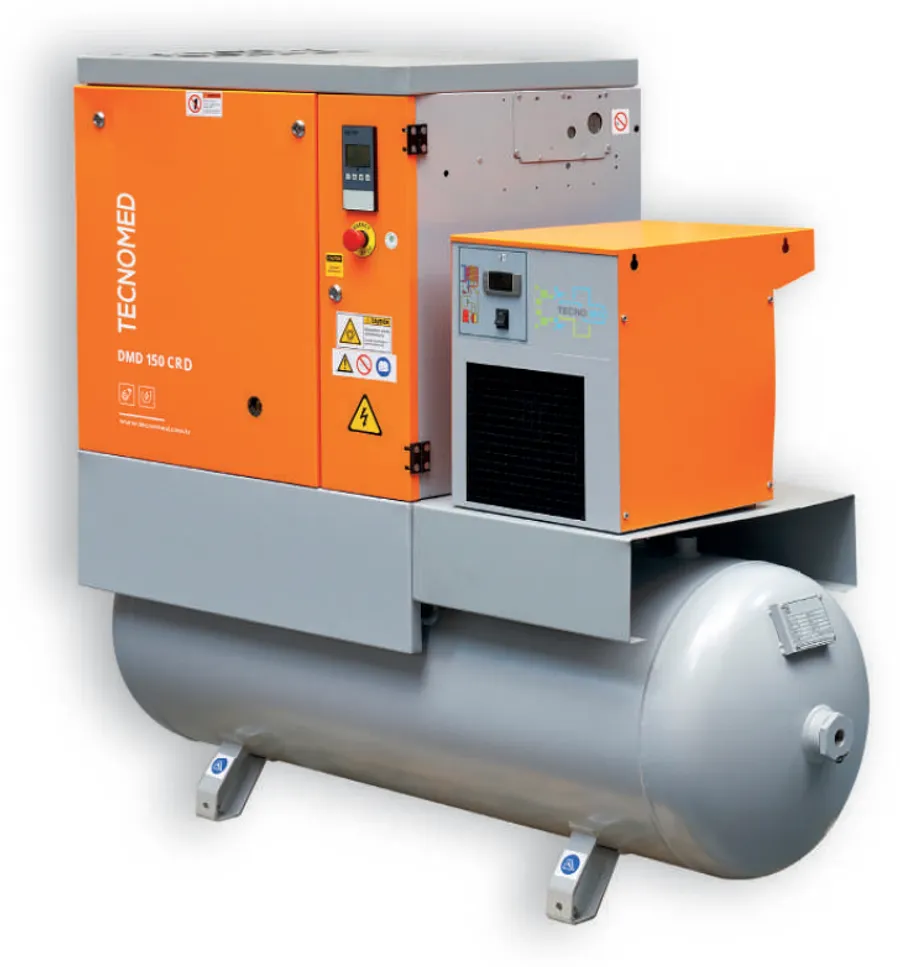

The TEC51.20 configuration is built around three screw compressors so that the plant keeps running while one machine is under maintenance or has failed. Compressor capacities run from 41,4 m³/h to 187,2 m³/h per machine at a maximum of 10 bar, with electric motor powers of 5,5 kW (7,5 hp) up to 22 kW (30 hp). Receiver capacity is either 500 or 1000 litres with two or three tanks, and each model is supplied with two filter sets, two dryers, one medical air regulator group for 4-7 bar and a complete connection equipment set.
Tecnomed medical air plants are designed and manufactured according to ISO 7391-1, ISO 7396-2, HTM 02-01 and HTM 2022, and the system complies with HTM 02-01. Model selection follows the flow calculation of the project, so a small district hospital and a large tertiary centre each receive a plant sized for their real diversified demand rather than a fixed package. Plant rooms can be arranged in line or in an L layout depending on the space available, and options such as automatic drain systems and filter clogging indicators can be added at the component level.
Key features
- Triplex screw compressor configuration for continuous supply
- Compressor capacities from 41,4 m³/h to 187,2 m³/h per machine
- 10 bar maximum compressor pressure
- Motor powers from 5,5 kW (7,5 hp) to 22 kW (30 hp)
- 500 Lt or 1000 Lt receiver tanks, two or three per plant
- Two filter sets per plant with particle trap, oil trap and activated carbon stages
- Two air dryers per plant, refrigerated or desiccant type
- Medical air regulator group for the 4-7 bar range
- Complete connection equipment set supplied with every model
Technical specifications
Medical Air Plant Models (TEC51.20)
| Product Code | Compressor Capacity | Compressor Max Pressure | Compressor Electric Motor Power | Tank Capacity | Filter Group | Dryer Capacity | Medical Air Regulator Group 4-7 Bar | Connection Equipment |
|---|---|---|---|---|---|---|---|---|
| TEC51.20.01 | 41,4 m³/h x 3 | 10 bar | 5,5 kw / 7,5 hp | 500 Lt x 2 | 2 Set | 54 m³/h x 2 | 1 piece | 1 Set |
| TEC51.20.02 | 57,6 m³/h x 3 | 10 bar | 7,5 kw / 10 hp | 500 Lt x 2 | 2 Set | 72 m³/h x 2 | 1 piece | 1 Set |
| TEC51.20.03 | 80,4 m³/h x 3 | 10 bar | 11 kw / 15 hp | 1000 Lt x 2 | 2 Set | 109,8 m³/h x 2 | 1 piece | 1 Set |
| TEC51.20.04 | 134,4 m³/h x 3 | 10 bar | 15 kw / 20 hp | 1000 Lt x 2 | 2 Set | 150 m³/h x 2 | 1 piece | 1 Set |
| TEC51.20.05 | 156 m³/h x 3 | 10 bar | 18,5 kw / 25 hp | 1000 Lt x 3 | 2 Set | 186 m³/h x 2 | 1 piece | 1 Set |
| TEC51.20.06 | 187,2 m³/h x 3 | 10 bar | 22 kw / 30 hp | 1000 Lt x 3 | 2 Set | 216 m³/h x 2 | 1 piece | 1 Set |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC51.20.01 | Medical Air Plant 41,4 m³/h x 3 – 5,5 kW compressors, 500 Lt x 2 tanks |
TEC51.20.02 | Medical Air Plant 57,6 m³/h x 3 – 7,5 kW compressors, 500 Lt x 2 tanks |
TEC51.20.03 | Medical Air Plant 80,4 m³/h x 3 – 11 kW compressors, 1000 Lt x 2 tanks |
TEC51.20.04 | Medical Air Plant 134,4 m³/h x 3 – 15 kW compressors, 1000 Lt x 2 tanks |
TEC51.20.05 | Medical Air Plant 156 m³/h x 3 – 18,5 kW compressors, 1000 Lt x 3 tanks |
TEC51.20.06 | Medical Air Plant 187,2 m³/h x 3 – 22 kW compressors, 1000 Lt x 3 tanks |
Options and accessories
- Refrigerated or desiccant dryer selection
- Automatic evacuation system and condenser drain on the air tanks
- Filter element clogging indicator
- Automatic drain system on the filter group
- Vertical or horizontal receiver tanks
- Backup feeding from a cylinder manifold supply unit
Frequently asked questions
Why does a medical air plant need three compressors?
Medical air is a patient-critical supply, so the plant must keep working with one machine out of service. A triplex arrangement lets one compressor be taken down for maintenance or failure while the remaining machines still cover peak demand, which is the redundancy hospital standards expect.
How is the compressed air made suitable for medical use?
Air from the compressors is stored in the receiver tanks, dried to remove moisture, then passed through a particle trap, an oil trap and an activated carbon filter to strip out oil droplets and hydrocarbon odours. Only after this chain does the regulator group release it into the pipeline.
What line pressure is delivered?
The compressors run up to 10 bar and the medical air regulator group stabilises the line in the 4-7 bar band. Around 7-8 bar is preferred for surgical air, while 4-5 bar is used for respiration in intensive care and operating rooms.
How do we choose between TEC51.20.01 and TEC51.20.06?
Selection follows the calculated diversified medical air demand of the hospital. The range covers 41,4 m³/h to 187,2 m³/h per compressor with matching tank, filter, dryer and regulator sets, so the model is chosen once the outlet count and flow calculation of the project are known.
