Overview

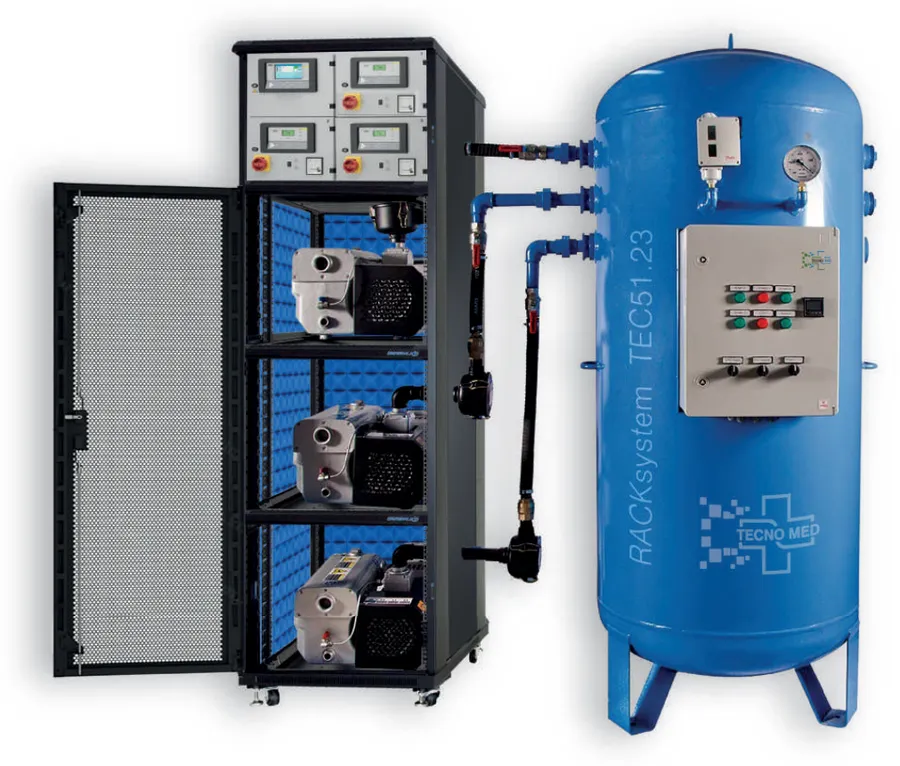

Where a conventional skid-mounted plant will not fit, the rack system medical vacuum plant stacks the pumps vertically in a modular cabinet. The result is the same triplex suction source with the same capacity table, but in a footprint that suits narrow or awkward plant rooms. The unit is designed as a ready-to-use assembly, so site work is reduced to connecting the pipeline, drain and power supply.
The rack is supplied in connection with bacteria line filters and a PLC control panel, which manages soft starting and the equal-aging sequence of the pumps. Open shelves inside the cabinet give direct access to each machine for oil changes, filter replacement and inspection without dismantling the rack. The compact structure makes installation straightforward for the user and keeps cable and pipe runs short.
Seven models mirror the standard vacuum range: system capacities of 25, 40, 60, 106, 151, 205 and 305 m³/h per pump at 50 Hz with motor powers from 0,75 kW to 7,5 kW, three pumps per plant, twin tanks of 500, 1000 or 2000 litres, a double bacteria filter set, a connection equipment set and one PLC control panel. The plant serves the same duties as the standard system: patient rooms, intensive care and operating theatres.
Key features
- Designed as a ready-to-use assembly for the medical vacuum system
- Modular design that saves space in narrow plant rooms
- Supplied in connection with bacteria line filters and PLC control panel
- Compact structure providing ease of installation
- Open shelves for easy maintenance access to every pump
- System capacities from 25 m³/h to 305 m³/h per pump at 50 Hz
- Motor powers from 0,75 kW to 7,5 kW
- Twin vacuum tanks of 500 Lt, 1000 Lt or 2000 Lt
- Double bacteria filter set and complete connection equipment
Technical specifications
Rack System Medical Vacuum Plant Models (TEC51.23)
| Product Code | System Capacity (m³/h 50 hz) | Electric Motor Power Kw/50 hz | Tank Capacity | Bacteria Filter Group | Connection Equipment | PLC Control Panel |
|---|---|---|---|---|---|---|
| TEC51.23.01 | 25 m³/h x 3 | 0,75 kw | 500 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.23.02 | 40 m³/h x 3 | 1,1 kw | 500 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.23.03 | 60 m³/h x 3 | 1,5 kw | 500 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.23.04 | 106 m³/h x 3 | 2,2 kw | 1000 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.23.05 | 151 m³/h x 3 | 3,3 kw | 1000 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.23.06 | 205 m³/h x 3 | 5,5 kw | 1000 Lt x 2 | Double Set | 1 Set | 1 PC |
| TEC51.23.07 | 305 m³/h x 3 | 7,5 kw | 2000 Lt x 2 | Double Set | 1 Set | 1 PC |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC51.23.01 | Rack System Medical Vacuum Plant 25 m³/h x 3 – 0,75 kW pumps, 500 Lt x 2 tanks |
TEC51.23.02 | Rack System Medical Vacuum Plant 40 m³/h x 3 – 1,1 kW pumps, 500 Lt x 2 tanks |
TEC51.23.03 | Rack System Medical Vacuum Plant 60 m³/h x 3 – 1,5 kW pumps, 500 Lt x 2 tanks |
TEC51.23.04 | Rack System Medical Vacuum Plant 106 m³/h x 3 – 2,2 kW pumps, 1000 Lt x 2 tanks |
TEC51.23.05 | Rack System Medical Vacuum Plant 151 m³/h x 3 – 3,3 kW pumps, 1000 Lt x 2 tanks |
TEC51.23.06 | Rack System Medical Vacuum Plant 205 m³/h x 3 – 5,5 kW pumps, 1000 Lt x 2 tanks |
TEC51.23.07 | Rack System Medical Vacuum Plant 305 m³/h x 3 – 7,5 kW pumps, 2000 Lt x 2 tanks |
Options and accessories
- Vertical or horizontal vacuum tank
- Clog indicator on the bacteria filter group
- General and preventive maintenance kits for the pump range
Frequently asked questions
Why choose the rack system over a standard vacuum plant?
The capacities are identical; the difference is geometry. Stacking the pumps in a modular cabinet turns a wide skid into a tall, narrow unit, which is what makes the rack system useful in cramped plant rooms and in refurbishments where the room cannot be enlarged.
Is maintenance harder inside a cabinet?
No. The rack uses open shelves so each pump can be reached directly for oil changes, exhaust filter replacement and inspection. The general maintenance kit is applied every 3000 hours or every six months, as with the standard plant.
What is supplied with the rack plant?
Each model includes three vacuum pumps in the rack, two vacuum tanks of 500, 1000 or 2000 litres, a double bacteria filter set, a complete connection equipment set and one PLC control panel, designed as a ready-to-use assembly.
