Overview
The Na-Di bridge type intensive care unit is a ceiling-mounted bridge that carries medical gas services, electrical services and the intensive care equipment used at the bedside in modular hospital intensive care units. Gas outlets are grouped along angled faces on the bridge body so probes can be inserted from the working position, and electrical sockets run along the opposite face. The unit is manufactured in accordance with EN 11197.
Its defining feature is the sliding structure. Pendentives travel along the bridge and lock where the clinician needs them, which means the equipment position follows the patient and the procedure rather than being fixed at build time. Each pendentive turns through a 340 degree route. The bridge body is coated aluminium, measures 330 x 2000 x 130 mm (width x length x height), carries up to 50 kg and runs on a 220 V - 50 Hz supply.
Two equipment groups are offered. The wet stand carries the infusion pump and perfuser carrier and two IV posts, slides along the unit, turns through 340 degrees and has up and down height adjustment. The dry stand carries one stainless steel shelf drawer, one stainless steel shelf and four side accessory rails of 10 x 30 mm, and also slides along the unit with a 340 degree turning route. Both work with the TEC12 accessory family: monitor stand, infusion pump and serum rail, and intensive care basket.
Key features
- Ceiling-mounted bridge for modular intensive care units
- Sliding pendentives that travel along the full bridge
- 340 degree turning route on the pendentives and stands

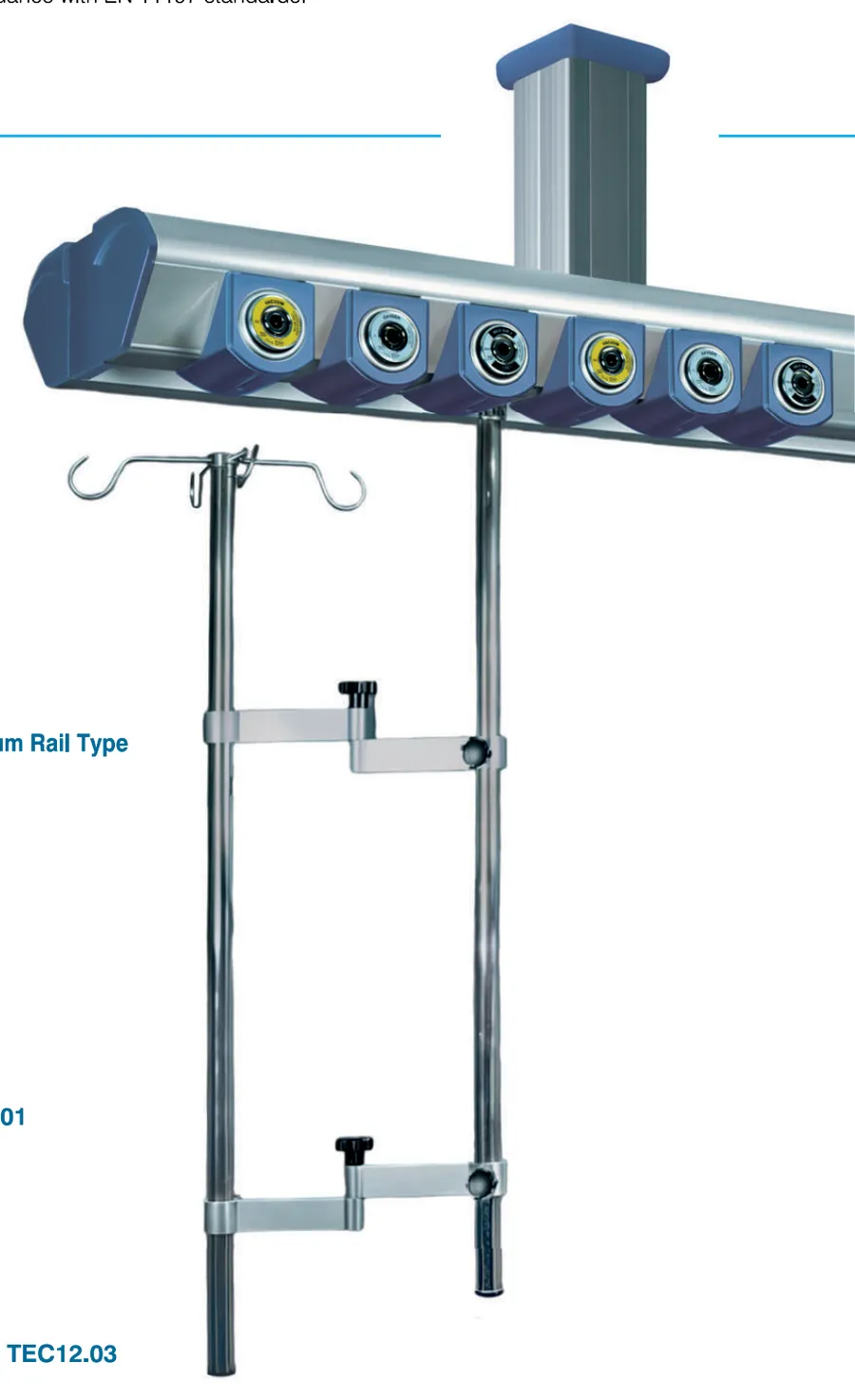

- Wet stand with infusion pump and perfuser carrier and 2 IV posts
- Wet stand with up and down height adjustment
- Dry stand with stainless steel shelf drawer and shelf
- 4 side accessory rails of 10 x 30 mm on the dry stand
- Coated aluminium body, 50 kg carrying capacity

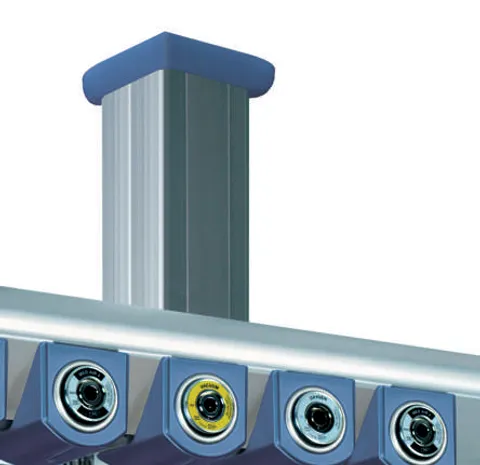

- Angled gas outlet faces for easier probe insertion
- Compatible with TEC12.01 to TEC12.06 accessories
Technical specifications
Na-Di Bridge Type Intensive Care Unit - Technical Specifications
| Specification | Value |
|---|---|
| Unit dimensions (width x length x height) | 330 x 2000 x 130 mm |
| Carrying capacity | 50 kg |
| Material | Coated aluminium |
| Electricity | 220 V - 50 Hz |
| Turning route | 340 degrees |
Equipment Groups
| Equipment Group | Content |
|---|---|
| Wet Stand | Infusion pump and perfuser carrier |
| Wet Stand | 2 IV posts |
| Wet Stand | 340 degree turning route |
| Wet Stand | Sliding system throughout the unit |
| Wet Stand | Up and down height adjustment |
| Dry Stand | 1 stainless steel shelf drawer |
| Dry Stand | 1 stainless steel shelf |
| Dry Stand | 4 side accessory rails 10 x 30 mm |
| Dry Stand | Sliding system throughout the unit |
| Dry Stand | 340 degree turning route |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC11.12 | Na-Di Bridge Type Intensive Care Unit – Bridge ICU with sliding pendentives, wet and dry stand equipment groups |
TEC12.01 | Monitor Stand – Rail-mounted monitor shelf for the bridge |
TEC12.02 | Infusion Pump and Serum Rail Type – IV post with infusion pump carrier |
TEC12.03 | Intensive Care Basket – Wire basket for consumables |
TEC12.04 | Medical Accessory Rail – Rail for bedside accessories |
TEC12.05 | Monitor Stand with Basket – Monitor arm combined with a wire basket |
TEC12.06 | Serum Rail Type – Serum hanger on a rail mount |
Options and accessories
- Wet stand equipment group
- Dry stand equipment group
- TEC12.01 monitor stand
- TEC12.02 infusion pump and serum rail type
- TEC12.03 intensive care basket
- TEC12.04 medical accessory rail
- TEC12.05 monitor stand with basket
- TEC12.06 serum rail type
Frequently asked questions
How much equipment can the Na-Di bridge carry?
The unit has a carrying capacity of 50 kg. The bridge body is coated aluminium and measures 330 x 2000 x 130 mm (width x length x height), with a 220 V - 50 Hz electrical supply. Loads should be distributed across the sliding pendentives rather than concentrated at one point.
What is the difference between the wet stand and the dry stand?
The wet stand is for infusion: it carries the infusion pump and perfuser carrier and two IV posts, and adds up and down height adjustment. The dry stand is for equipment and consumables: one stainless steel shelf drawer, one stainless steel shelf and four side accessory rails of 10 x 30 mm. Both slide along the unit and turn through 340 degrees.
Can the pendentives be moved after installation?
Yes. The sliding system runs throughout the unit, so pendentives travel along the bridge and can be repositioned at any time, and each turns through a 340 degree route. That is the main reason bridge units are chosen for modular intensive care layouts where bed position changes.
Which accessories fit the bridge?
The TEC12 range: monitor stand TEC12.01, infusion pump and serum rail type TEC12.02, intensive care basket TEC12.03, medical accessory rail TEC12.04, monitor stand with basket TEC12.05 and serum rail type TEC12.06. The dry stand's 10 x 30 mm side rails accept the same fittings.
