Overview

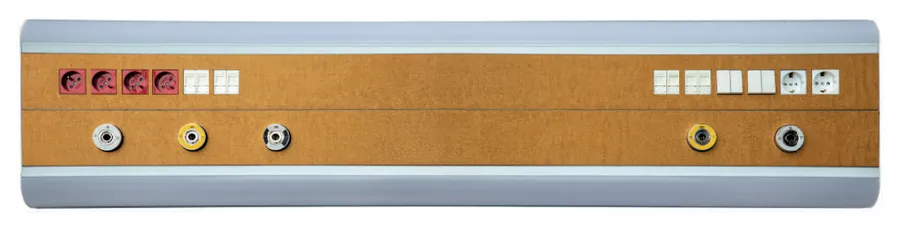

The Twin bed head unit is built for rooms where a single-channel profile runs out of space. Its double aluminium body channel accommodates more medical gas services and more electrical services in one run, and the two side composite lighting channels spread reading and room light along the full width of the unit. The result is a bedhead that fills and visually balances a wide wall rather than leaving a narrow strip above the bed.
Construction keeps gas and electricity in separate passages: every gas service and every electrical service has its own channel through the body, so maintenance on one side never disturbs the other. The unit ships as standard with four mains sockets, two UPS sockets, grounding points, a data socket, two LED bottom reading lights, two LED upper room lights, a double switch group and medical gas outlets in DIN, BS or AFNOR pattern. All Tecnomed bed head units are manufactured in accordance with EN 11197.
Optional features include front cover design options, wood and gold foil coating, antibacterial paint in RAL colours, non-standard lengths and an accessory rail. The wide format works well in double-bed rooms, larger private rooms and high-dependency beds where extra outlets and extra sockets are required. Each unit is produced in the size, colour and feature set defined by the hospital project.
Key features
- Double aluminium body channel for higher service capacity
- Side composite lighting channels along the full unit width
- Separate channels for every gas and electrical service
- 4 mains sockets and 2 UPS sockets in DIN, UK or USA pattern
- Grounding points and 1 data socket as standard
- 2 LED bottom reading lights and 2 LED upper room lights
- Double switch group
- Medical gas outlets to DIN, BS or AFNOR pattern
- Wood and gold foil coating options
Technical specifications
Twin Bed Head Unit - Standard Accessories and Optional Features
| Standard Accessories | Optional Features |
|---|---|
| Electrical sockets (mains) 4 pieces DIN-UK-USA | Front cover design options |
| Electrical sockets (UPS) 2 pieces DIN-UK-USA | Wood and gold foil coating options |
| Grounding points | Antibacterial paint in RAL colours |
| Data socket 1 piece | Optional length |
| Bottom reading lighting - 2 pieces LED | Accessory rail |
| Upper room lighting - 2 pieces LED | |
| Double switch group | |
| Medical gas outlets - DIN-BS-AF |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC11.03 | Twin Bed Head Unit – Double body channel bedhead with side composite lighting channels |
Options and accessories
- Front cover design options
- Wood and gold foil coating options
- Antibacterial paint in RAL colours
- Optional length
- Accessory rail
Frequently asked questions
Why choose the Twin bed head unit over a single-channel bedhead?
Because it carries more. The double aluminium body channel accommodates additional medical gas services and additional electrical services in the same run, and the standard specification already doubles the socket and lighting count of a ward unit. It also presents better on a wide wall, where a narrow profile can look undersized.
How is electrical safety handled in a double channel unit?
Gas and electrical services pass through separate channels throughout the unit, and grounding points are fitted as standard. Mains and UPS circuits are supplied as distinct socket groups so critical equipment can be connected to the protected supply.
Can an accessory rail be added to the Twin unit?
Yes, an accessory rail is one of the listed optional features, along with front cover design options, wood and gold foil coating, antibacterial RAL paint and non-standard lengths. Specify the rail at order stage so the fixing is built into the profile.
