Overview
The Hendem-X bed head unit is built on the same aluminium monolithic channel as the Hendem model, so it shares the continuous profile, the individual connection socket for each electrical outlet and the separate connection within the gas service. What distinguishes it is lighting: as well as the bottom reading LED, the unit carries upper general room lighting and is controlled by a double switch group, and Tecnomed offers four additional room lighting options beyond the standard arrangement.
Electrical and gas systems are designed completely separate from each other inside the body, in accordance with EN 11197. Standard accessories are two grounded mains sockets, two UPS sockets, a data socket, one LED bottom reading light, one LED upper room light, a double switch group, nurse call provision as an option and medical gas outlets in DIN, BS or AFNOR pattern as an option. Grounding points, front cover design options and antibacterial paint in RAL colours are available as optional features.
Units are produced in the colours and sizes suited to the hospital project and its architectural design, with optional lengths up to 6000 mm. The extra lighting capability makes Hendem-X a good fit for rooms where the bedhead has to provide the general room light as well as the patient reading light, such as single-bed rooms without a separate ceiling scheme, observation rooms and refurbishment projects where ceiling work has to be minimised.
Key features
- Aluminium monolithic channel body
- Reading lighting and general room lighting in one unit
- Four additional room lighting options
- Double switch group
- Separate connection socket for each electrical outlet
- Electrical and gas systems completely separated inside the unit
- 2 grounded mains sockets and 2 UPS sockets in DIN, UK or USA pattern
- Data socket as standard
- Medical gas outlets to DIN, BS or AFNOR pattern (optional)
- Optional length up to 6000 mm
Technical specifications
Hendem-X Bed Head Unit - Standard Accessories and Optional Features
| Standard Accessories | Optional Features |
|---|---|
| Electrical sockets (grounded) 2 pieces DIN-UK-USA | Grounding points |
| Electrical sockets (UPS) 2 pieces DIN-UK-USA | Front cover design options |
| Data socket | Antibacterial paint in RAL colours |
| Bottom reading lighting - 1 ea LED | Optional length - up to 6000 mm |
| Upper room lighting - 1 ea LED | |
| Double switch group | |
| Nurse call provision (optional) | |
| Medical gas outlets (optional) - DIN-BS-AF |
Models and product codes
| Product code | Models and product codes |
|---|---|

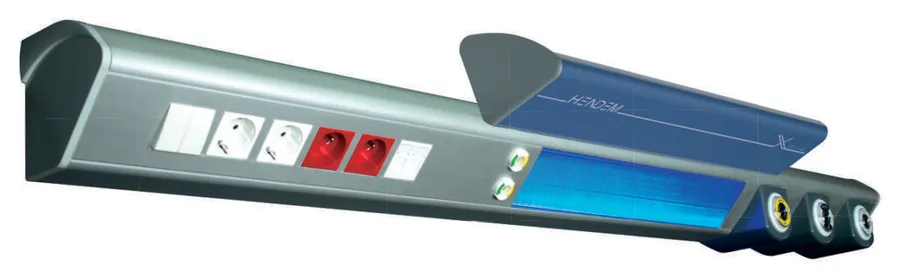

TEC11.06 | Hendem-X Bed Head Unit – Hendem profile with upper room lighting and four additional room lighting options |
Options and accessories
- Four additional room lighting options
- Grounding points
- Front cover design options
- Antibacterial paint in RAL colours
- Optional length up to 6000 mm
- Nurse call provision
- Medical gas outlets in DIN, BS or AFNOR pattern
Frequently asked questions
What are the four additional room lighting options?
Tecnomed offers Hendem-X with four extra room lighting configurations beyond the standard upper room LED, so the unit can be matched to how the room is actually lit. The exact combination is confirmed at project stage together with the switch group and any dimming requirement.
Does Hendem-X keep the monolithic channel construction?
Yes. The body is still manufactured entirely from an aluminium monolithic channel, with a separate connection socket for each electrical outlet and a separate connection within the gas socket. Electrical and gas systems are completely separated from each other inside the unit.
Are medical gas outlets fitted as standard?
Medical gas outlets are listed as an optional item on Hendem and Hendem-X, available in DIN, BS or AFNOR pattern. Where the hospital already standardises on one outlet type, the unit can be delivered prepared and the outlets fitted to match the existing pipeline.
