Overview
The TEC12 range is the accessory ecosystem that turns an intensive care unit into a working bedside. Six items are catalogued: the monitor stand TEC12.01, the infusion pump and serum rail type TEC12.02, the intensive care basket TEC12.03, the medical accessory rail TEC12.04, the monitor stand with basket TEC12.05 and the serum rail type TEC12.06. All of them clamp to the accessory rails built into Tecnomed bridge, wall-mounted and vertical intensive care units.
The monitor stand is a height-adjustable shelf on a vertical rail plate, so the display can be set to the working eye level of the clinician and moved when the bed is repositioned. The monitor stand with basket adds a wire basket beneath the shelf for cables and consumables, and the intensive care basket is available on its own. The infusion pump and serum rail type is an IV post with hooks and a pump carrier bracket, and the serum rail type is a simple rail-mounted serum hanger.
The medical accessory rail TEC12.04 is the mounting interface itself. It is supplied in the standard 10 x 30 mm section used across the Tecnomed intensive care range - the same rails fitted to the four sides of the Na-Di bridge dry stand and offered as a 30 x 10 mm rail service on the Trio intensive care unit - so equipment bought for one bay fits every other bay in the hospital. Accessories are produced in stainless steel and coated aluminium and can be specified per project.
Key features
- Six catalogued accessories covering the ICU bedside
- Height-adjustable monitor stand on a vertical rail plate
- Monitor stand with integrated wire basket
- Intensive care basket for consumables
- Infusion pump and serum rail type with hooks and pump bracket
- Rail-mounted serum hanger
- 10 x 30 mm medical accessory rail section
- Common mounting interface across bridge, wall and vertical ICU units
- Stainless steel and coated aluminium construction
Technical specifications
TEC12 Intensive Care Accessories
| Product Code | Accessory | Description |
|---|---|---|
| TEC12.01 | Monitor Stand | Height-adjustable monitor shelf on a vertical rail plate |

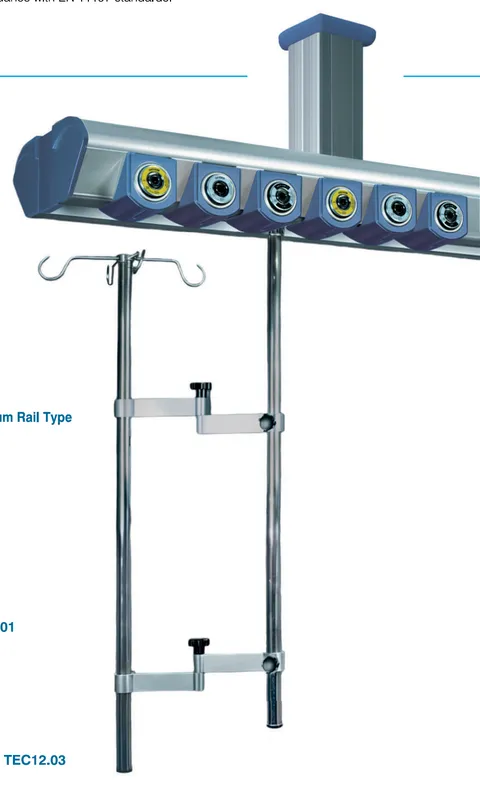

| TEC12.02 | Infusion Pump and Serum Rail Type | IV post with serum hooks and infusion pump carrier bracket |
| TEC12.03 | Intensive Care Basket | Wire basket for consumables and cables |
| TEC12.04 | Medical Accessory Rail | 10 x 30 mm rail section for mounting bedside equipment |

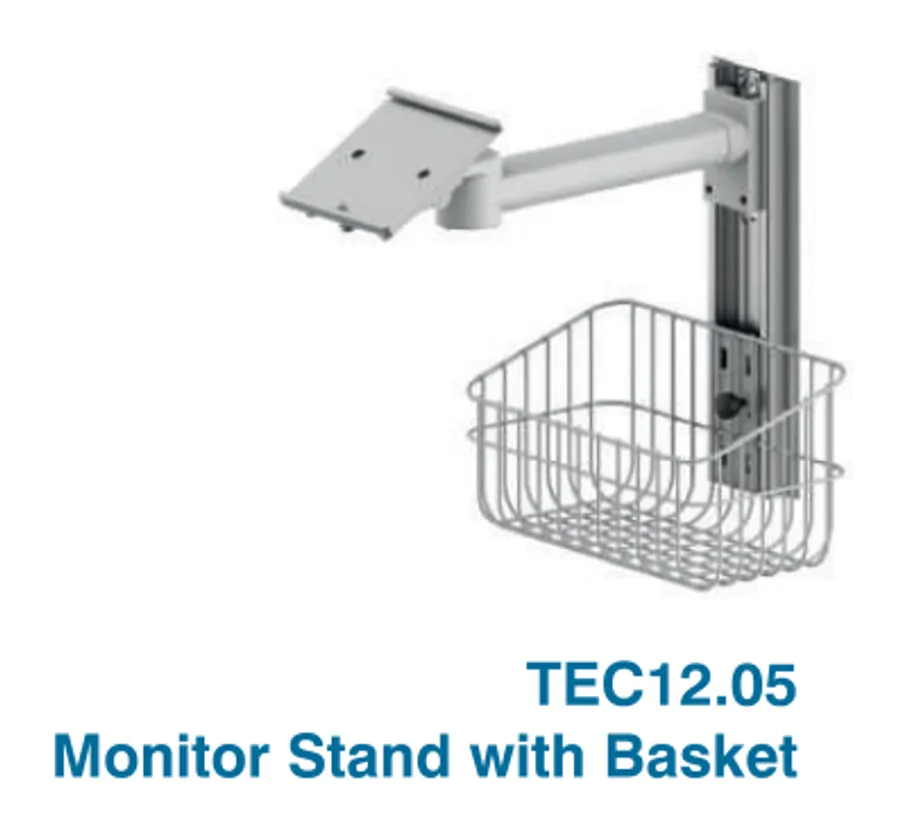

| TEC12.05 | Monitor Stand with Basket | Monitor arm with wire basket beneath the shelf |
| TEC12.06 | Serum Rail Type | Rail-mounted serum hanger |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC12.01 | Monitor Stand – Height-adjustable monitor shelf on a rail plate |
TEC12.02 | Infusion Pump and Serum Rail Type – IV post with hooks and pump carrier |
TEC12.03 | Intensive Care Basket – Wire basket for consumables |
TEC12.04 | Medical Accessory Rail – 10 x 30 mm accessory rail section |
TEC12.05 | Monitor Stand with Basket – Monitor arm combined with wire basket |
TEC12.06 | Serum Rail Type – Rail-mounted serum hanger |
Options and accessories
- Stainless steel or coated aluminium finish
- Rail lengths to suit the unit
- Wet stand and dry stand mounting on bridge units
- Project-specific accessory combinations
Frequently asked questions
What rail size do the TEC12 accessories fit?
The medical accessory rail TEC12.04 is supplied in the 10 x 30 mm section used throughout the Tecnomed intensive care range. The same section is fitted as the four side accessory rails on the Na-Di bridge dry stand and offered as the 30 x 10 mm rail service on the Trio intensive care unit.
Can these accessories be fitted to an existing unit?
Yes, provided the unit carries a compatible accessory rail. Tecnomed bridge, wall-mounted and vertical intensive care units and rail-equipped bed head units such as Clarail all take the TEC12 range, and the medical accessory rail can be supplied separately where a rail has to be added.
Which accessory suits a monitor plus its cables?
The monitor stand with basket TEC12.05 combines the monitor arm with a wire basket beneath the shelf, which keeps cables and consumables off the floor. Where the monitor and the storage need to be at different heights, order the monitor stand TEC12.01 and the intensive care basket TEC12.03 separately.
