Overview

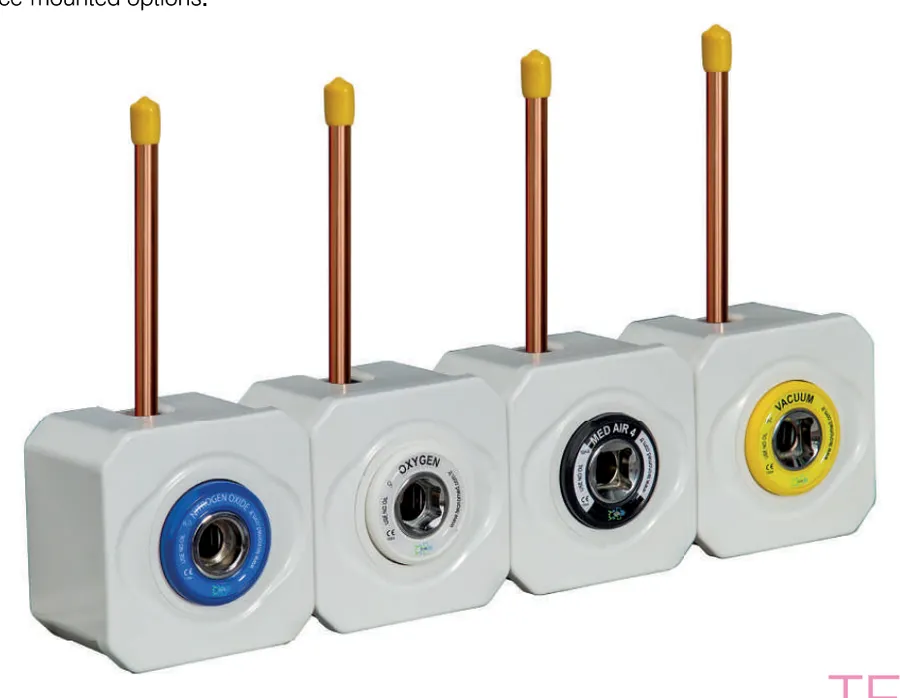

A terminal wall-mount gas outlet is the stand-alone version of the TEC61 terminal unit: the same brass socket, but delivered in its own case so it can be fixed straight to a wall without a bed head unit, pendant or module behind it. The case has a simple, elegant profile with rounded corners, which keeps a ward or corridor position looking finished rather than improvised, and gives the copper tail a protected route out of the back or top of the box.
Installation is the main argument for this version. Flush-mounted and surface-mounted options are both available, so the same product covers a new wall built around a back box and an existing wall where the box is screwed on and the pipe chased or surface run. Because the internal socket is the standard TEC61 unit, everything else behaves as in the rest of the range: check-valve isolation when the head is removed, brass gas path, silicone seals and 100% leak testing.
Codes carry the standard in the third block – .BS.TU, .DIN.TU or .NF.TU – and the gas number in the second, covering oxygen, nitrous oxide, medical air 4 bar, medical air 7 bar, medical vacuum, carbon dioxide and nitrogen. Typical positions are single beds added to an existing ward, examination and treatment rooms, day-case chairs, imaging rooms and corridors where a full bed head unit would be disproportionate.
Key features
- Single medical gas outlet in a compact wall-mount case
- Simple, elegant housing with rounded corners for patient areas
- Flush-mounted and surface-mounted installation options
- Available in BS 5682, DIN 13260-2 and AFNOR NF S 90-116
- All seven gas services covered
- Standard TEC61 socket internals: check valve, brass gas path, silicone seals
- Colour coded and gas marked front ring
- Copper tail exits the case for direct pipeline connection
- 100% leak tested before dispatch
Technical specifications
Terminal Wall-Mount Gas Outlets – Product Codes by Standard
| Gas Service | BS 5682 | DIN 13260-2 | AFNOR NF S 90-116 |
|---|---|---|---|
| Oxygen | TEC61.01.BS.TU | TEC61.01.DIN.TU | TEC61.01.NF.TU |
| Nitrous Oxide | TEC61.02.BS.TU | TEC61.02.DIN.TU | TEC61.02.NF.TU |
| Medical Air 4 bar | TEC61.03.BS.TU | TEC61.03.DIN.TU | TEC61.03.NF.TU |
| Medical Air 7 bar | TEC61.04.BS.TU | TEC61.04.DIN.TU | TEC61.04.NF.TU |
| Medical Vacuum | TEC61.05.BS.TU | TEC61.05.DIN.TU | TEC61.05.NF.TU |
| Carbon Dioxide | TEC61.06.BS.TU | TEC61.06.DIN.TU | TEC61.06.NF.TU |
| Nitrogen | TEC61.07.BS.TU | TEC61.07.DIN.TU | TEC61.07.NF.TU |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC61.01.BS.TU / .DIN.TU / .NF.TU | Oxygen terminal wall-mount outlet – Flush or surface mounted; BS 5682, DIN 13260-2 or AFNOR NF S 90-116 version |
TEC61.02.BS.TU / .DIN.TU / .NF.TU | Nitrous Oxide terminal wall-mount outlet – Flush or surface mounted; BS 5682, DIN 13260-2 or AFNOR NF S 90-116 version |
TEC61.03.BS.TU / .DIN.TU / .NF.TU | Medical Air 4 bar terminal wall-mount outlet – Flush or surface mounted; BS 5682, DIN 13260-2 or AFNOR NF S 90-116 version |
TEC61.04.BS.TU / .DIN.TU / .NF.TU | Medical Air 7 bar terminal wall-mount outlet – Flush or surface mounted; BS 5682, DIN 13260-2 or AFNOR NF S 90-116 version |
TEC61.05.BS.TU / .DIN.TU / .NF.TU | Medical Vacuum terminal wall-mount outlet – Flush or surface mounted; BS 5682, DIN 13260-2 or AFNOR NF S 90-116 version |
TEC61.06.BS.TU / .DIN.TU / .NF.TU | Carbon Dioxide terminal wall-mount outlet – Flush or surface mounted; BS 5682, DIN 13260-2 or AFNOR NF S 90-116 version |
TEC61.07.BS.TU / .DIN.TU / .NF.TU | Nitrogen terminal wall-mount outlet – Flush or surface mounted; BS 5682, DIN 13260-2 or AFNOR NF S 90-116 version |
Options and accessories
- BS 5682, DIN 13260-2 or AFNOR NF S 90-116 probe standard
- Flush-mounted or surface-mounted case
- 10 mm or 12 mm copper outlet pipe instead of the standard 8 mm
- Grouped into a TEC62 wall gas module where several services are needed
Frequently asked questions
When should I use a terminal box instead of a bed head unit?
Where only one or two gas services are needed and there is no requirement for electrical sockets, lighting or nurse call. Examination rooms, imaging rooms, day-case chairs and single added beds are typical cases; a full ward bay is usually better served by a bed head unit.
How do I read the product code?
The second block is the gas – 01 oxygen, 02 nitrous oxide, 03 medical air 4 bar, 04 medical air 7 bar, 05 vacuum, 06 carbon dioxide, 07 nitrogen – and the third block is the standard: BS, DIN or NF. So TEC61.05.DIN.TU is a DIN 13260-2 vacuum terminal box.
Can the box be installed flush with the wall?
Yes. Both flush-mounted and surface-mounted options are offered. Flush installation is planned with the wall build, while the surface version is fixed to a finished wall and is the usual choice in refurbishment.
Is the internal outlet the same as the standard range?
It is. The case holds a standard TEC61 terminal unit, so it shares the check-valve maintenance behaviour, the brass gas path, the silicone seals and the same probes and adapters as the rest of the range.
