Overview

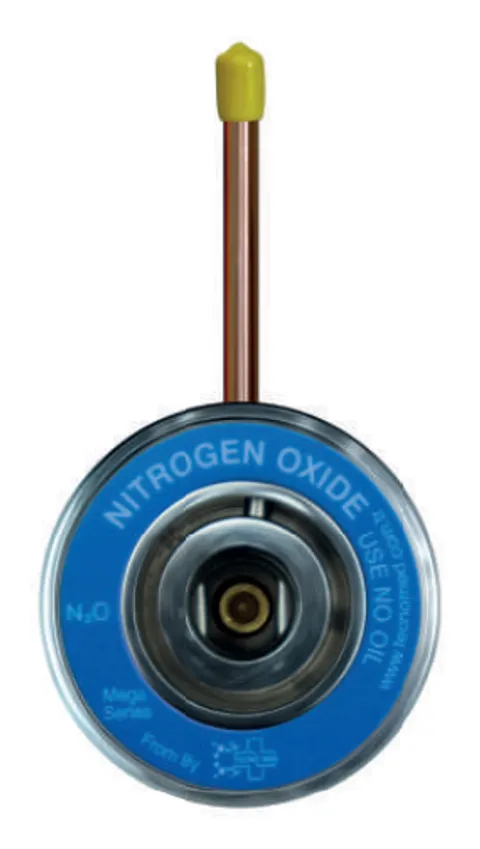

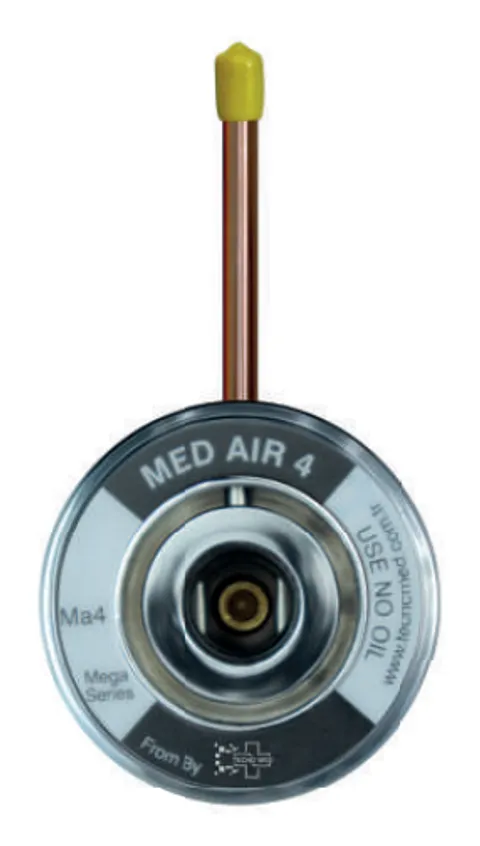

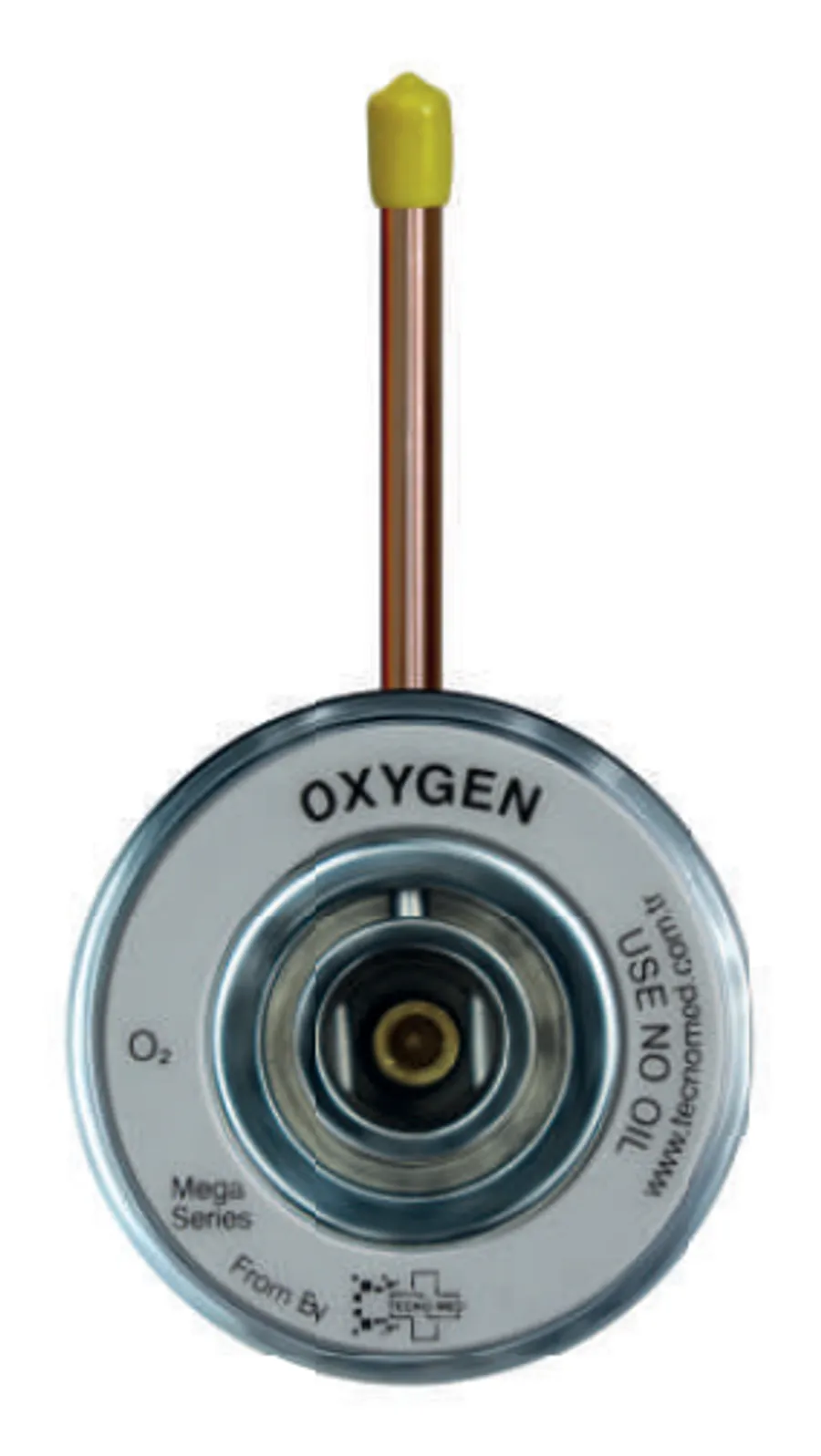

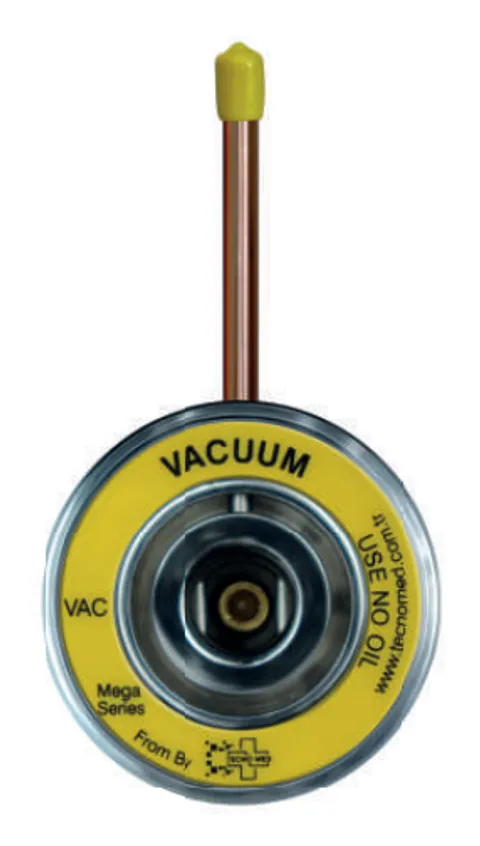

The Mega series medical gas outlet is aimed at hospitals that want the terminal units to outlast the refurbishment cycle. Product components are produced entirely from metal raw materials – brass, stainless steel and aluminium – without any plastic, and the lower body is machined from M58 forged brass. The operating system is designed so the gas probe is released by pressing with one finger, which keeps the everyday handling as comfortable as on the lighter series.
Because there is no plastic in the assembly, the front resists impact from trolleys, beds and cleaning equipment and tolerates repeated disinfection without crazing or discolouring. The unit keeps the platform behaviour of the TEC61 range: the check valve interrupts the gas when the upper body is removed for maintenance, seals are silicone, and every gas-wetted surface is brass. Tecnomed provides a five-year warranty on Mega series outlets, and the series is designed to Medical Devices Directive 93/42/EEC.
Mega outlets are available for oxygen, medical vacuum, medical air 4 bar, medical air 7 bar, nitrous oxide and carbon dioxide, with probe geometry to BS 5682 or DIN 13260-2. Codes use connection numbers 09 to 12 with an .MG suffix, covering 45° pipe, 90° pipe, 45° union and rear outlet versions. Typical placements are intensive care, operating theatres, emergency departments and any high-traffic position where a plastic cover would not survive.
Key features
- All components from metal raw materials: brass, stainless steel and aluminium, no plastic
- Lower body machined from M58 forged brass
- One-finger probe release operating system
- Five-year warranty from Tecnomed
- Probe geometry to BS 5682 or DIN 13260-2
- Designed according to Medical Devices Directive 93/42/EEC
- Check-valve system interrupts the gas when the upper body is removed
- Six gas services in four connection variants
- Resistant to impact and repeated disinfection
- 100% leak tested before dispatch
Technical specifications
Mega Series Gas Outlet – Product Codes
| Gas Service | 45° Pipe Connection | 90° Pipe Connection | 45° Union Connection | Rear Outlet |
|---|---|---|---|---|
| Oxygen | TEC61.01.09.MG | TEC61.01.10.MG | TEC61.01.11.MG | TEC61.01.12.MG |
| Nitrous Oxide | TEC61.02.09.MG | TEC61.02.10.MG | TEC61.02.11.MG | TEC61.02.12.MG |
| Medical Air 4 bar | TEC61.03.09.MG | TEC61.03.10.MG | TEC61.03.11.MG | TEC61.03.12.MG |
| Surgical Air 7 bar | TEC61.04.09.MG | TEC61.04.10.MG | TEC61.04.11.MG | TEC61.04.12.MG |
| Medical Vacuum | TEC61.05.09.MG | TEC61.05.10.MG | TEC61.05.11.MG | TEC61.05.12.MG |
| Carbon Dioxide | TEC61.06.09.MG | TEC61.06.10.MG | TEC61.06.11.MG | TEC61.06.12.MG |
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC61.01.09–12.MG | Oxygen outlet – Mega series, all-metal; 45° pipe, 90° pipe, 45° union and rear outlet versions, BS 5682 or DIN 13260-2 |
TEC61.02.09–12.MG | Nitrous Oxide outlet – Mega series, all-metal; 45° pipe, 90° pipe, 45° union and rear outlet versions, BS 5682 or DIN 13260-2 |
TEC61.03.09–12.MG | Medical Air 4 bar outlet – Mega series, all-metal; 45° pipe, 90° pipe, 45° union and rear outlet versions, BS 5682 or DIN 13260-2 |
TEC61.04.09–12.MG | Surgical Air 7 bar outlet – Mega series, all-metal; 45° pipe, 90° pipe, 45° union and rear outlet versions, BS 5682 or DIN 13260-2 |
TEC61.05.09–12.MG | Medical Vacuum outlet – Mega series, all-metal; 45° pipe, 90° pipe, 45° union and rear outlet versions, BS 5682 or DIN 13260-2 |
TEC61.06.09–12.MG | Carbon Dioxide outlet – Mega series, all-metal; 45° pipe, 90° pipe, 45° union and rear outlet versions, BS 5682 or DIN 13260-2 |
Options and accessories
- BS 5682 or DIN 13260-2 probe geometry
- 45° pipe, 90° pipe, 45° union output or rear outlet
- 10 mm or 12 mm copper outlet pipe instead of the standard 8 mm
- Matching probes, adapters and double adapters
Frequently asked questions
Why choose Mega over the standard MC outlet?
Both have a brass gas path, but on Mega every component – including the trim and operating parts – is metal, and Tecnomed backs the series with a five-year warranty. It is the choice for intensive care, theatres and any location where covers take knocks or heavy disinfection.
Is the Mega series harder to operate because it is all metal?
No. The operating system is designed to release the gas probe when pressed with one finger, so handling matches the lighter series. The difference the user notices is the solid feel and the temperature of the metal front, not extra force.
Which gases are available in the Mega series?
Oxygen, vacuum, medical air 4 bar, medical air 7 bar, nitrous oxide and carbon dioxide. For nitrogen, use the standard DIN 13260-2 or BS 5682 outlets, which cover all seven services.
What does the five-year warranty cover?
Tecnomed provides a five-year warranty on the Mega series outlet itself when installed and used as intended. Consumable items such as probes, adapters and hoses follow their own warranty terms; ask for the current warranty statement with your quotation.
