Overview

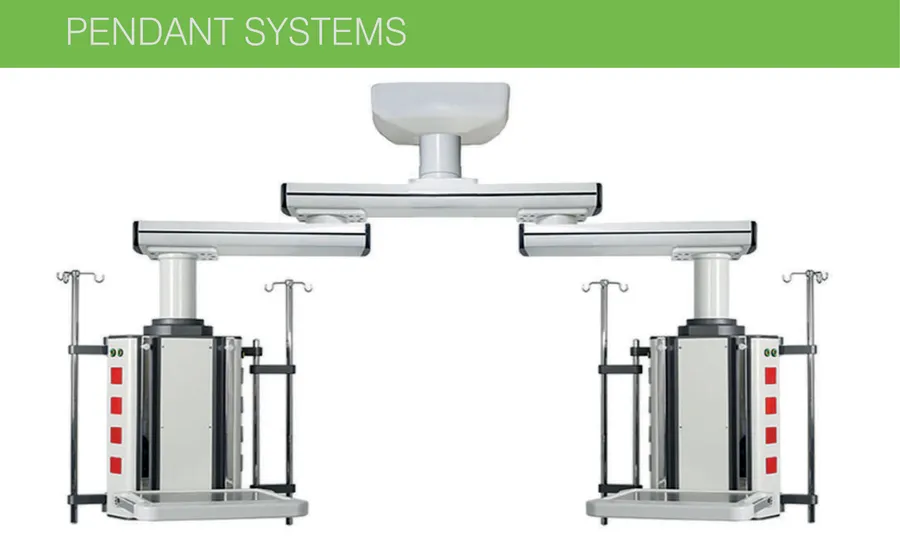

A twin pendant mounts one ceiling flange and one central beam, then hangs two complete service columns from separate arms on either side. Each head swings independently, so a twin pendant can cover two adjacent intensive care bed spaces from a single structural fixing, or split one workstation into a wet side for suction and drainage and a dry side for monitoring and infusion. This halves the number of ceiling penetrations and keeps the slab work simple in refurbishment projects.
Both heads carry the standard package of eight electrical sockets in UK, USA or European pattern, eight grounding points and two rail racks, and both are fitted with colour-coded brake buttons and knuckles so the joint being released is always obvious. Load carrying capacity is 90 kg as standard, and a customised build up to 180 kg is available where a full monitoring and ventilation stack is mounted. An electromagnetic and pneumatic brake system can be specified as an option.
Shelves, IV poles, a drawer, a data socket cover, pressure gauges for the medical gases and medical gas outlets in BS, DIN or AFNOR pattern can be configured differently on each head, so a single unit can be built asymmetrically to suit the two roles it serves. Tecnomed produces twin pendants to the room drawings, setting beam and arm lengths against the distance between the two working positions.
Key features
- Two independent service heads on one ceiling mount
- Separate arm and brake system for each head
- Standard package of 8 electrical sockets, 8 grounding points and 2 rail racks
- 90 kg load carrying capacity as standard, up to 180 kg as a customised build
- Colour-coded brake buttons and knuckles
- Optional electromagnetic and pneumatic brake system
- Heads can be configured differently for wet and dry services
- Medical gas outlets available in BS, DIN and AFNOR patterns
Models and product codes
| Product code | Models and product codes |
|---|---|
TEC21.06 | Twin Pendant – Two service heads from a single ceiling mount |
Options and accessories
- Shelves
- IV pole
- Drawer
- Data socket cover
- Pressure gauge for medical gases
- Medical gas outlets (BS, DIN, AFNOR)
- Electromagnetic and pneumatic brake system
- Load capacity increased up to 180 kg
- Different service configuration on each head
Frequently asked questions
Can a twin pendant serve two different beds?
Yes. The two heads hang from separate arms on a common beam, so each one can be positioned over its own bed space. This is a common arrangement in intensive care bays where ceiling fixing points are limited or where the slab structure makes a second penetration difficult.
Can the two heads be equipped differently?
They can. Outlets, sockets, shelves, drawers and IV poles are specified per head, so one side can be set up as a wet head for suction and drainage and the other as a dry head for monitors and infusion pumps.
Is the load capacity shared between the two heads?
Each head is dimensioned for its own load, with 90 kg as the standard figure and up to 180 kg on a customised build. Send the equipment list for both sides with the enquiry so the beam, arms and fixing are calculated for the real load.
